Magnetic fields are the invisible forces that power countless technologies, from electric motors to wireless chargers. For engineers working in electromagnetism, knowing how to concentrate and strengthen these fields is crucial for designing efficient and powerful devices. This blog post will walk you through practical techniques to enhance magnetic fields in coils, helping you optimize your electromagnetic projects.
Why Magnetic Fields Matter
Before diving into the how-to’s, it’s essential to understand why magnetic fields are so important. When an electric current passes through a coil, it generates a magnetic field. This field can then be used to induce currents, create motion, and perform various other functions. The stronger and more concentrated this field, the more effective and efficient the coil will be.
The Basics of Coils and Magnetic Fields

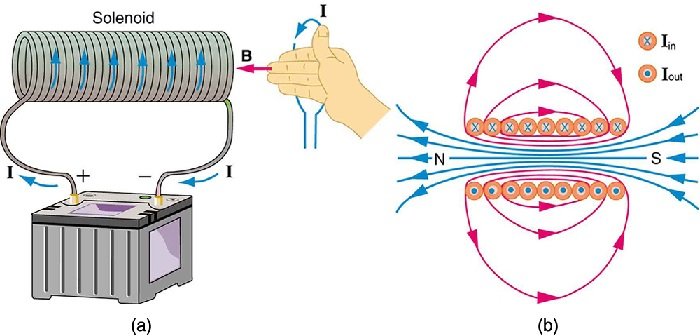

Coils, often made of copper or other conductive materials, are used to generate magnetic fields. When an electric current flows through the coil, it creates a magnetic field perpendicular to the direction of the current. The strength of this field depends on several factors, including the number of turns in the coil, the current flowing through it, and the core material around which the coil is wound.
Electromagnetic Core Materials
One of the most effective ways to enhance a coil’s magnetic field is by using an electromagnetic core material. These materials, such as iron or ferrite, concentrate the magnetic field and significantly increase its strength. Electromagnetic cores are crucial in applications like transformers and inductors, where strong magnetic fields are required.
Increasing Coil Turns
The number of turns in a coil directly impacts the strength of the magnetic field. More turns mean a stronger field, but this also increases the coil’s resistance. Engineers must balance the number of turns with the desired field strength and resistance to achieve optimal performance.
Balancing Turns and Resistance
While increasing the number of coil turns strengthens the magnetic field, it also raises the coil’s resistance, leading to power losses. To find the right balance, you can use thicker wire for the coil or opt for superconducting materials, which have no resistance at low temperatures.
Practical Applications
In practical applications, such as inductors and transformers, engineers often wind multiple layers of coils to maximize the number of turns and field strength. This technique is especially useful in high-power devices, where a strong magnetic field is essential for efficient operation.
Boosting Current Flow
Another straightforward way to strengthen a magnetic field is by increasing the current flowing through the coil. However, this method comes with its challenges, primarily heat generation. Higher currents can cause the coil to overheat, potentially damaging it and reducing efficiency.
Managing Heat
To manage heat, engineers use cooling systems, such as fans or liquid cooling, to dissipate the excess heat generated by higher currents. Additionally, choosing materials with high thermal conductivity for the coil can help reduce overheating.
Safety Concerns
While increasing current can enhance magnetic fields, it’s crucial to consider safety. High currents can be dangerous, and proper insulation and protective measures are necessary to prevent accidents and equipment damage.
Optimizing Core Material
The core material around which the coil is wound plays a significant role in concentrating and strengthening the magnetic field. Materials like iron and ferrite are commonly used due to their high magnetic permeability, which allows them to concentrate magnetic fields effectively.
Selecting the Right Material
Choosing the right core material depends on the application and desired field strength. Iron cores are suitable for high-power applications, while ferrite cores are ideal for high-frequency applications due to their low eddy current losses.
Core Shape and Design
The shape and design of the core also impact the magnetic field. Toroidal cores, for example, offer better magnetic field concentration and reduced losses compared to other shapes. Engineers must consider these factors when designing coils for specific applications.
Reducing Eddy Current Losses
Eddy currents are circular currents induced in conductive materials by changing magnetic fields. These currents can cause significant power losses and reduce the efficiency of coils. To minimize these losses, engineers use laminated cores or materials with high resistivity.
Laminated Cores
Laminated cores consist of thin layers of conductive material separated by insulating layers. This design reduces eddy current losses by limiting the path for the currents, thereby enhancing the coil’s efficiency.
High-Resistivity Materials
Using materials with high resistivity, such as ferrites, can also help reduce eddy current losses. These materials impede the flow of eddy currents, minimizing power losses and improving the overall performance of the coil.
Practical Tips for Engineers
When designing coils to concentrate and strengthen magnetic fields, engineers should consider the following tips:
- Balance Turns and Resistance: Find the optimal number of turns to achieve the desired field strength without excessive resistance.
- Manage Heat: Use cooling systems and high thermal conductivity materials to handle the heat generated by higher currents.
- Choose the Right Core Material: Select core materials that suit your application and desired field strength.
- Reduce Eddy Current Losses: Employ laminated cores or high-resistivity materials to minimize power losses.
Concentrating and strengthening magnetic fields in coils is a fundamental aspect of designing efficient and powerful electromagnetic devices. By understanding the basics of coils, optimizing core materials, and managing heat and eddy current losses, engineers can enhance the performance of their projects. Remember, the key to success lies in balancing various factors to achieve the desired magnetic field strength and efficiency. For more insights and assistance in optimizing your electromagnetic designs, consider exploring advanced tools and resources available in the field.
